Cấu hình Wireless Controller Zyxel Phần 2

Nguyễn Lê Quân bởi Nguyễn Lê Quân
09/06/2020
trong Low End, Network
0

Cấu hình Wireless Controller Zyxel

Xin chào mọi người, hôm nay mình xin chia sẻ phần tiếp theo của bài hướng dẫn cấu hình Wireless Controller Zyxel NXC255 cơ bản: cấu hình WCL ra Internet và Captive Portal trên Wireless Controller Zyxel NXC255.

CONTENT:

1. Cấu hình WLC ra Internet

2. Cấu hình Captive Portal

3. Tính năng Mac-Filtering trên Wireless Controller Zyxel NXC2500



1. Cấu hình Wireless Controller Zyxel ra Internet

Bước 1: chọn interface cấm dây ra internet

Cấu hình trên VLAN0 ( lưu ý vlan này rất nhạy cảm)

ITFORVN.COM H12-Cấu-hình-VLAN-0-ra-internet Cấu hình Wireless Controller Zyxel  Phần 2
H1. Cấu hình VLAN 0 ra internet
ITFORVN.COM H13-Cấu-hình-IP-tĩnh-cho-VLAN-0 Cấu hình Wireless Controller Zyxel  Phần 2
H2. Cấu hình IP tĩnh cho VLAN 0
ITFORVN.COM H14-Cấu-hình-IP-tĩnh-cho-VLAN-0 Cấu hình Wireless Controller Zyxel  Phần 2
H3 Cấu hình IP tĩnh cho VLAN 0

Chọn network>Routing>Policy Route

ITFORVN.COM H15-Cấu-hình-ra-internet-WLC Cấu hình Wireless Controller Zyxel  Phần 2
H4. Cấu hình ra internet WLC
ITFORVN.COM H16-Cấu-hình-ra-internet-WLC Cấu hình Wireless Controller Zyxel  Phần 2
H5. Cấu hình ra internet WLC

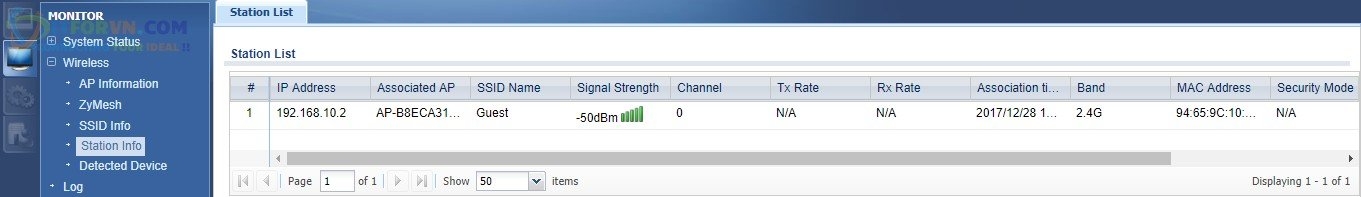

Bấm chọn OK, đến đây thì vlan 10 đã ra được Internet

ITFORVN.COM H17-Vlan-client-ra-internet Cấu hình Wireless Controller Zyxel  Phần 2
H6. Vlan Client ra internet

2. Cấu hình Captive Portal cho Wireless Controller Zyxel NXC2500

Mục đích thiết lập Portal:

  • Quản lý được người dùng
  • Chạy chiến lượt quảng cáo, marketing online

Mình bắt đầu cấu hình Portal trên WLC Zyxel nhé.

Bước 1: Tạo users sử dụng wifi thông qua portal

ITFORVN.COM H18-Tạo-users-sử-dụng-wifi-thông-qua-portal Cấu hình Wireless Controller Zyxel  Phần 2
H7. Tạo users sử dụng wifi thông qua portal

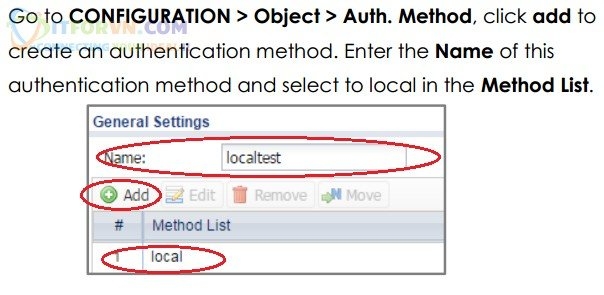

Bước 2: Vào mode CONFIGURATION > Object > Auth. Method. Click vào nút Add để tiến hành tại Authentication method. Điền “Name” và chọn Method List là “local”

ITFORVN.COM H19-Auth.-Method Cấu hình Wireless Controller Zyxel  Phần 2
H8. Auth. Method

Bước 3: Cấu hình Captive Portal

  1. Chọn CONFIGURATION > Object > Address > Click Add để tạo range địa chỉ cần chứng thực portal trước khi ra Internet.  Và cấu hình như hình dưới. Lưu ý Range địa chỉ có thể thay đổi theo ý muốn nhé.
ITFORVN.COM H20-Cấu-hình-Captive-Portal Cấu hình Wireless Controller Zyxel  Phần 2
H9. Cấu hình Captive Portal

Bước 4: Chọn CONFIGURATION > Captive Portal > Captive Portal. Tick vào Enable Captive Portal. Chọn Authentication Method thành localtest. Chọn Apply để thiết lập Captive Portal.

ITFORVN.COM H21-Cấu-hình-Captive-Portal Cấu hình Wireless Controller Zyxel  Phần 2
H10. Cấu hình Captive Portal

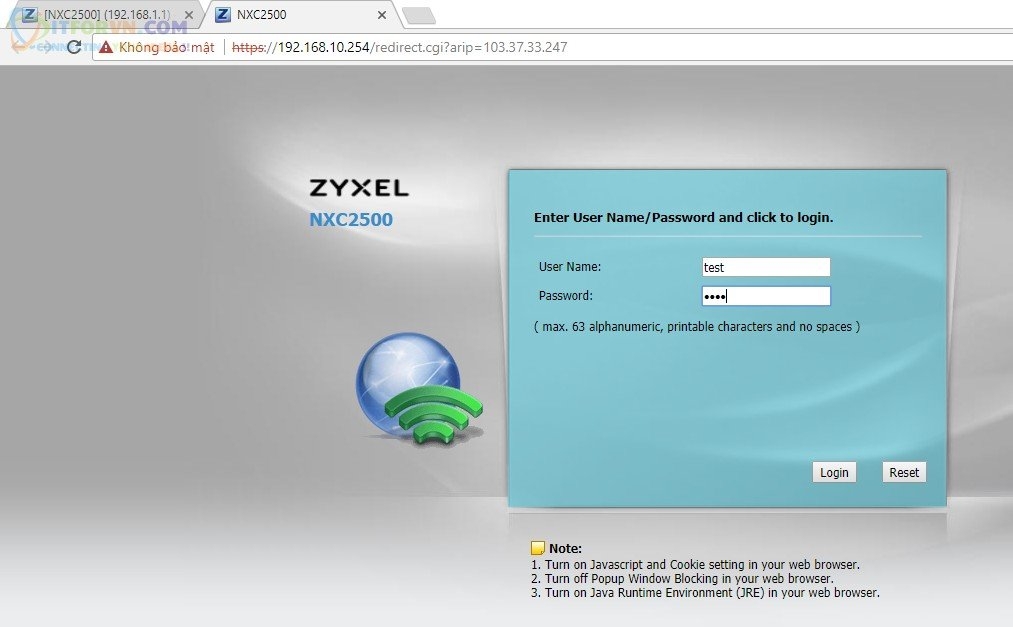

Bước 5: Test chức năng Portal trên browser

ITFORVN.COM H22-Test-Portal Cấu hình Wireless Controller Zyxel  Phần 2
H11. Test Portal
ITFORVN.COM H23-Test-Portal-sử-dụng-wifi Cấu hình Wireless Controller Zyxel  Phần 2
H12.Test Portal sử dụng wifi

Các bạn thấy khi tiến hành cấu hình portal thì người dùng muốn truy cập  vào bất kì trang web nào đều phải tiến hành đăng nhập trên portal, qua đó Admin sẻ có thể dễ dàng quản lí được người dùng

3. Tính năng Mac-Filtering trên Wireless Controller Zyxel NXC2500

Các bước tiến hành Filter MAC một end-user:

ITFORVN.COM H1-Tính-Năng-MAC-Filtering Cấu hình Wireless Controller Zyxel  Phần 2
H1. Cấu Hình Tính Năng MAC Filtering của Wireless Controller Zyxel

Bước 1: Chọn SSID cần Filter End-user

ITFORVN.COM H2-Chọn-SSID-cần-Filter Cấu hình Wireless Controller Zyxel  Phần 2
H2. Chọn SSID cần Filter

Bước 2: H3 Add MAC thiết bị cần Filter

ITFORVN.COM H3-Add-MAC-cần-Filter Cấu hình Wireless Controller Zyxel  Phần 2
H3. Add MAC cần Filter

Bước 4: Truy cập SSID với Device có MAC bị Filter

ITFORVN.COM H5-Truy-cập-với-MAC-bị-filter Cấu hình Wireless Controller Zyxel  Phần 2
H4 Truy cập với MAC bị filter

Bước 5: Device này đã bị filter

ITFORVN.COM H6-MAC-đã-bị-filter Cấu hình Wireless Controller Zyxel  Phần 2
H5 MAC đã bị filter

Bước 6: Gỡ Filter-MAC và tiến hành truy cập lại

ITFORVN.COM H7-Gỡ-Filter-và-tiến-hành-truy-cập-lại Cấu hình Wireless Controller Zyxel  Phần 2
H6. Gỡ Filter và tiến hành truy cập lại

Thiết bị đã truy cập lại bình thường

ITFORVN.COM H8.-Truy-cập-thành-công Cấu hình Wireless Controller Zyxel  Phần 2
H7. Thiết bị đã truy cập lại bình thường

Bài hướng dẫn cấu hình cơ bản Wireless Controller Zyxel NXC2500 của mình xin tạm kết thúc tại đây, Bài viết tiếp  theo mình xin chia sẻ tiếp cấu hình Chứng thực 802.1x trên Wireless Controller Zyxel NXC2500. Hãy theo dõi bài viết tiếp theo tại website và blog itforvn.vcode.ovh nhé. Nếu có thắc mắc hay đóng góp các Anh em hãy comment bên dưới nhé!

Một lần nữa xin cám ơn Cty Tech Horizon đã cho group ITFORVN mượn thiết bị để thực hiện bài viết này.

Tác giả:  Quân Lê – ITFORVN.COM
